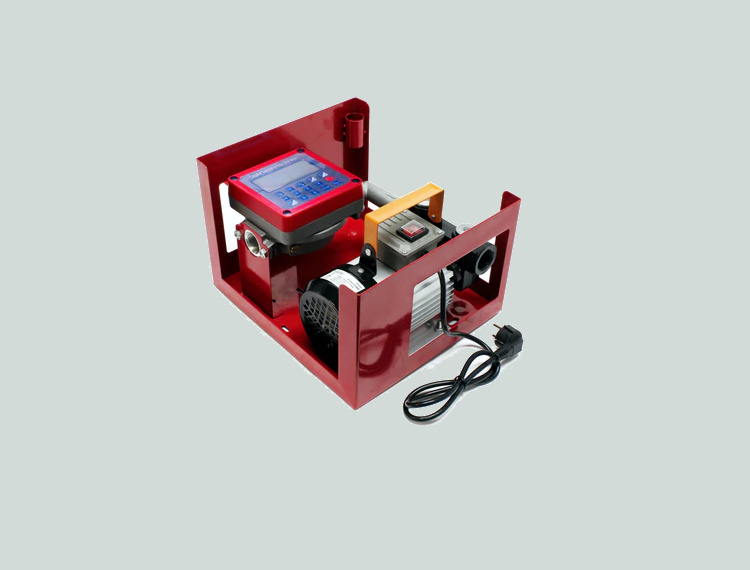

Electric Fuel Transfer Pump 230V with Digital Oval Gear Flow Meter

Product Number : Pump/China/230V/Digital OGM 11

Description

Electric Fuel Transfer Pump 230V with Digital OGM Quantitative Oval Gear Flow Meter.

  • Oval Gear Flow Meter -1" DN with Preset Pumping Available **
  • Equipped with Single Phase Induction Motor
  • Not to be used to measure liquid for resale *
Specification
Power
220V, 50Hz, 750W
Electric Current
2.8 A
Rotate Speed
1400 rpm
Condensator
450V - 25 UF
Flow
80 L/ Per Min
Lift
10m
Suction Range
5m
Country of Orgin
China
Measurement Accuracy
+/- 0.5%
Repeatability
+/- 0.3%
Volume Range
0.00-99999.99
Max pressure
50 psi/3.5 bar
Max-Batch Total
5 digits (xxxxx)
Cumulative Total
6 digits (xxxxxx)
Nozzle
Automatic Nozzle 0.75 inch
Hose
10 ft. (3.m) x 0.75 inch
Body
Cast Iron Shaft - Steel
