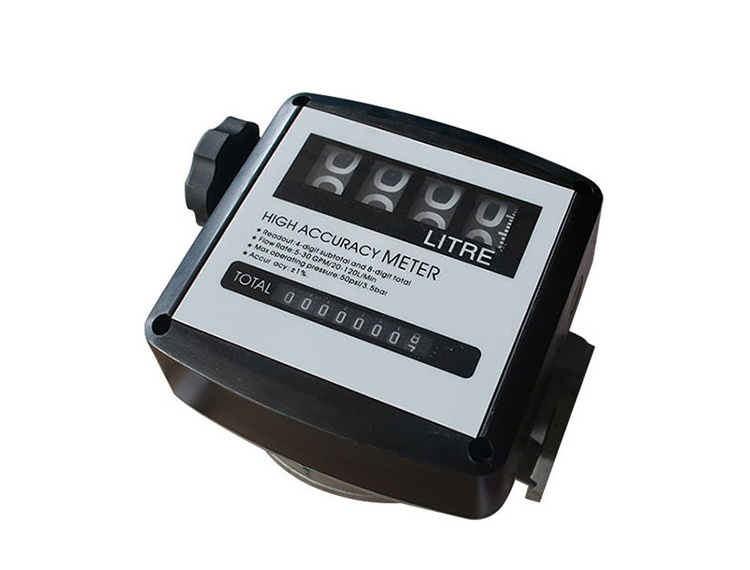

FM-120-2 Aluminum Mechanical Fuel Flow Meter
Product Number : Meter/China/FM-120-2/1
DescriptionThis mechanical oil flow meter is designed for measuring the flow rate of a wide range of fluids including diesel fuel, gasoline, kerosene, mineral spirits, etc. The material of the base is aluminum alloy which makes this meter strong and durable. It is easy to read how much liquid has been dispensed through the large-screen display.
- Large, easy- to- read display with twist knob reset
- Not to be used to measure liquid for resale
Specification
Model Number
FM-120-2
Measurement Range
20-120 L/min
Pressure Rating
10 bar
Inlet / Outlet Fittings
1" /1" NPT
Accuracy
+ /- 1%
Dimension
520 x 260 x 350 mm
Max-Batch Total
4 digits (xxxx)
Cumulative Total
7 digits (xxxxxxx)
Body Type
Aluminum
Country of Origin
China
