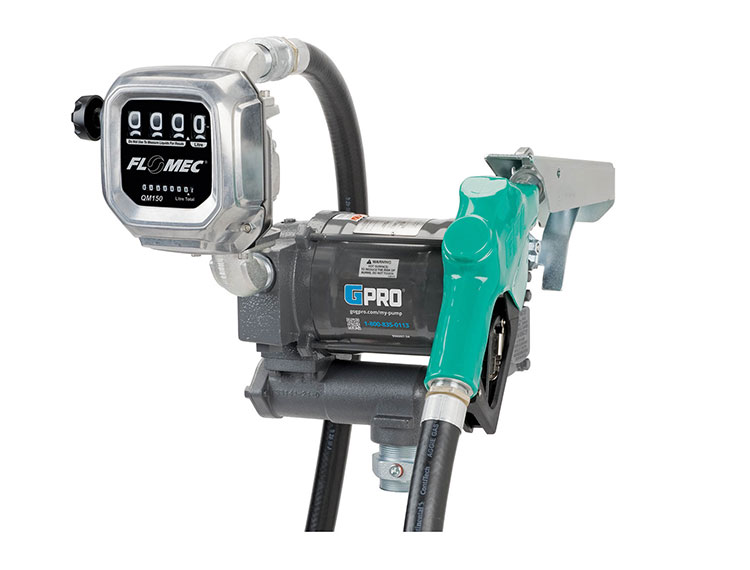

Flomec QM150 Flow Meter
Product Number : METER/GPI/QM150
DescriptionThis meter is designed for the field measurement of thin viscosity petroleum fuels only and intended for use with pump systems up to 150 LPM flow range (not intended for gravity flow systems). Using mechanical gears, these meters translate flow data from positive displacement oval gears into calibrated units which are indicated on the face of the meter. This meter is factory calibrated for diesel fuel.
- Positive Displacement Oval Gear Technology
- Not Intended for Gravity Flow Systems
- High Precision - 20X More Precise at 20GPM 4X Higher Accuracy: 0.5% Overall
- No Leaks No Seal - MAG Drive Frictionless Magnetic Drive Technology
- More Capacity - 40GPM vs 30GPM 33% Higher Flow Capacity
- Accurate Low End - 3X Better - Accurate to 2GPM vs 6GPM
- Lower Pressure Drop - 4 psi vs 12 psi Pressure Drop at 35GPM (And Only 1 psi at 10GPM
- More Flexble - Versatile Rotatable Display Mount
- No Calibration - Positive Displacement Oval Gear Technology No Calibration Required
Specification
Brand
GPI / Flomec
Country of Origin
USA
Model
QM150
Unit Of Measure
Litre
Housing / Cover / Fittings
Aluminum
Mag-Drive
Acetal, Stainless Steel and Neodymium (Nickel Plated)
Accuracy Diesel
+/- 0.5% (8 to 150 LPM)
+/- 0.25% (57 to 132 LPM)
Accuracy: Petrol
+/- 0.5% (8 to 150 LPM w/o Kit) (87 to 151 LPM w/*Kit)
+/- 0.25% (8 to 75 LPM w/o Kit) (102 to 151 LPM w/*Kit)
Operating Temparature
-40° to 52° C (-20° to 125° F UL)
Inlet/Outlet Ports
1” NPT (female)
Maximum Batch Total
9999
Maximum Cumulative Total
99,999,999
Technology
Positive Displacement Oval Gear
Use With
Diesel, Petrol, Kerosene
Approvals
UL 25
Weight
4.5 Kg
