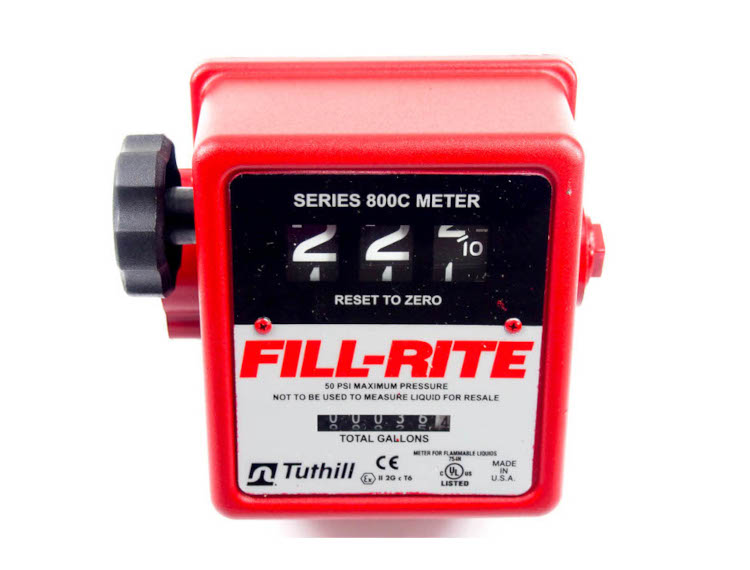

FILL-RITE 800 MECHANICAL FLOW METER

Product Number : FR/FM/FR807

Description

The 807C Mechanical flow meter has a large easy to read display, flow ports can be positioned vertically or horizontally, UL/cUL listed, handles fluid of any viscosity, rated for Gasoline, Diesel, Kerosene, mineral spirits, Stoddard solvents and heptane.  Fill-Rite meters provide precision and durability in a cost-effective design.  The 807C1 is a 3-wheel mechanical meter designed for transfer pumps with a flow rate of 5 to 20 GPM. this meter has a 1 in. inlet and outlet.

IMPORTANT! Special Notes to Consider Before Purchas, It is very important to check your pump specifications and match the min/max flow rate of your pump with the flow meter to obtain correct meter readings. E.g. if your pump flow rate is max:75 Ltrs/min & min:15 Ltrs/min, the flow meter flow rate range should be within the minimum and maximum flow range.

  • Not to be used to measure liquid for resale
  • Flow meter calibrated to 20Ltrs. or more only
Specification
Brand
Fill-Rite, USA
Model
FR 807C
Type
03 Wheel Mechanical
Resettable Totalizer
999 Liter
Master Totalizer
999999 Liter
Flow Rate
19 to 76 Ltrs./ min
Accuracy
+/- 1%
Inlet/Outlet
3/4” or 1”
Max Pressure
50 PSI (3.4bar)
Construction
Aluminum
