GPI INDUSTRIAL FLOW METER G2

Product Number : GPI/FM/G2

Description

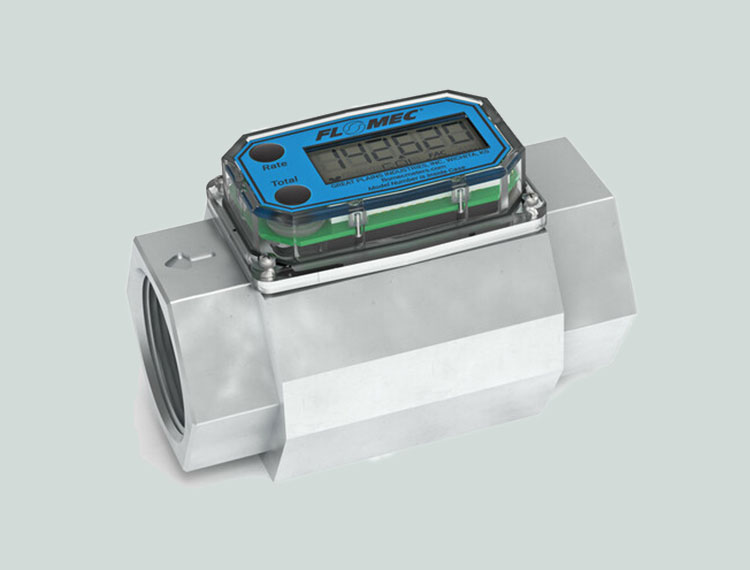

GPI Industrial Aluminum Flow Meter 50mm dia.

IMPORTANT! Special Notes to Consider Before Purchas,It is very important to check your pump specifications and match the min/max flow rate of your pump with the flow meter to obtain correct meter readings. E.g. if your pump flow rate is max:75 Ltrs/min & min:15 Ltrs/min, the flow meter flow rate range should be within the minimum and maximum flow range.



  • Not to be used to measure liquid for resale
  • Flow meter calibrated to 20Ltrs. or more only
Specification
Brand
GPI, USA
Model
A20
Flow Rate
76 to 760 LPM (20 to 200 GPM)
Accuracy
+ / - 0.75%
Repeatability
+ / - 0.1%
Pressure Rating
300 PSI / 21 BAR
Inlet / Outlet
50mm dia. both sides
Wetted Materials : Housing
Aluminum
Bearings
Ceramic
Shaft
Tungsten Carbide
Rotor
PVDF
Rings
316 Stainless Steel
Specification
2 Totals (Batch = Re settable, Cumulative = Non-Re settable)
Rate of Flow. Factory calibrated in liters. Field calibrate available
