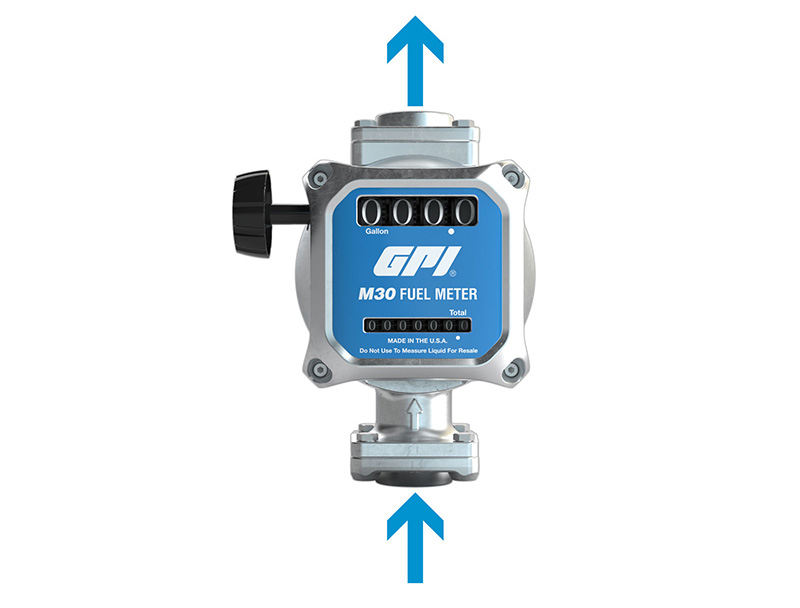

GPI M30 Fuel Flow Meter

Product Number : M30-L8N

Description

This quick-fit modular fuel meter is easy to install, easy to use, and easy to maintain. It is designed for the field measurement of thin viscosity petroleum fuel only and intended for use with pump systems in the 19 to 114 L/m flow range. Using mechanical gears, this meter translates flow data from a nutating disk into calibrated units which are indicated on the face of the meter. The M30 is equipped with both NPT and Flange connections which allows it to be installed on all threaded pump outlets or modular GPI products.

  • Quick Fit Modular Fuel Meter
  • Easily attaches to the G20 fuel transfer pump
  • Durable aluminum housing; magnetic drive replaces the driveshaft and seal, eliminating driveshaft leaks
  • Twist knob reset; batch total and cumulative total display
  • Easy to Read Four Digit Display and Rotatable Register
Specification
Brand
GPI
Model
M30
Country of Origin
USA
Typical Accuracy
+ /- 2%
Technology
Nutating Disc with Magnetic Drive
Flow Range
19 to 114 L/min
Operating Temparature
-20°F to 125°F (-29°C to 52°C)
Maximum Working Pressure
50 PSIG (3.4 bar)
Inlet / Outlet
1 in. / 1 in. NPT (Female Thread)
Maximum Batch Total
999.9
Maximum Cumulative Total
999,999.9
Housing, Cover, Fittings
Corrosion-resistant diecast aluminum
Weight
3.7 Kg
